SIM-PANEL/R RACING CONTROLLER
USER'S QUICK GUIDE

PRINT GUIDE

• CUSTOMIZING BACKLIGHT COLOR

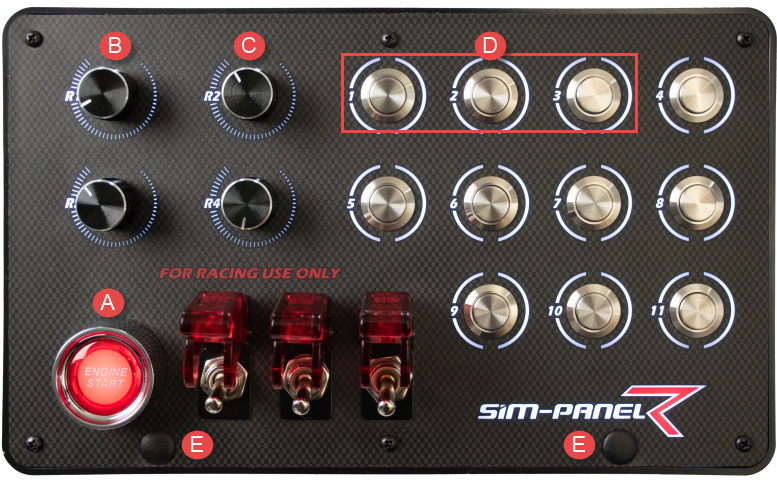

  1. PRESS AND HOLD THE ENGINE START BUTTON (A) WHILE SIMULTANEOUSLY PRESSING AND RELEASING THE ROTARY BUTTON LABELED "R1" (B) UNTIL THE DESIRED BACKLIGHT COLOR IS DISPLAYED.

• ADJUST BACKLIGHT BRIGHTNESS

  1. PRESS AND HOLD THE ENGINE START BUTTON (A) WHILE SIMULTANEOUSLY ROTATING THE ROTARY BUTTON LABELED "R1" (B) UNTIL DESIRED BRIGHTNESS IS ACHIEVED.

• CUSTOMIZING GAME PORT CONTROL MODES

  AVAILABLE GAME PORT CONTROL MODES

  • DEFAULT MODE (1 FLASH) - GAME PORT REMAINS ON (ACTIVATED) WHILE THE CONTROL IS PRESSED OR ACTUATED AND TURNS OFF (DEACTIVATED) WHEN THE CONTROL IS RELEASED OR DEACTUATED.
  • TOGGLE MODE (PUSHBUTTONS ONLY)(2 FLASHES) - GAME PORT IS TOGGLED ON (ACTIVATED) WHEN THE CONTROL IS MOMENTARILY PRESSED OR ACTUATED AND TOGGLED OFF (DEACTIVATED) WHEN THE CONTROL IS MOMENTARILY PRESSED OR ACTUATED AGAIN.
  • GATED MODE (3 FLASHES): GAME PORT IS MOMENTARILY TOGGLED ON/OFF WHEN THE CONTROL IS PRESSED OR ACTUATED AND MOMENTARILY TOGGLED ON/OFF AGAIN WHEN THE CONTROL IS RELEASED OR DEACTUATED.
  • DUAL-ROTARY MODE (R1-R4 ONLY) (4 FLASHES):
    • ROTATING THE ROTARY CONTROL MOMENTARILY ACTIVATES ONE SET (TWO) OF GAME PORTS
    • SIMULTANEOUSLY PRESSING THE CONTROL WHILE ROTATING MOMENTARILY ACTIVATES A DIFFERENT SET (TWO) OF GAME PORTS.
  1. ENTER SETUP BY PRESSING AND HOLDING THE ENGINE START BUTTON (A) WHILE SIMULTANEOUSLY PRESSING AND HOLDING THE ROTARY BUTTON LABELED "R2" (C) UNTIL THE SIM-PANEL/R LOGO FLASHES RED (APPROX. FIVE (5) SECONDS).
  2. MOMENTARILY PRESS AND RELEASE THE TARGET CONTROL UNTIL THE BACKLIGHTING FLASHES IN ACCORDANCE WITH THE DESIRED GAME PORT CONTROL MODE (SEE ABOVE).
  3. TO SAVE AND EXIT SETUP, PRESS AND HOLD THE ENGINE START BUTTON (A) WHILE PRESSING AND RELEASING THE ROTARY BUTTON LABELED "R2" (C) (THE SIM-PANEL/R LOGO WILL RETURN TO WHITE).

• RESET TO FACTORY CONFIGURATION

  1. SIMULTANEOUSLY PRESS AND HOLD BUTTONS 1,2, and 3 (D) UNTIL THE BACKLIGHTING FLASHES.

• MAPPING YOUR SIM-PANEL/R CONTROLS TO THE TARGET SIMULATION GAME

  1. Reference the documentation and/or help resources provided with the target simulation game for instructions related to mapping your SIM-PANEL/R controls to desired functions within the simulation.

• UTILIZING THE INTEGRATED DESK CLAMPS

  1. Remove both plastic caps (E).
  2. Fully insert the provided desk clamps (E).
  3. Position and clamp your SIM-PANEL/R Button Box to the edge of a compatible desktop surface.

Sim-Panel Product Warranty

This Limited Warranty is valid toward the original purchaser only and applies to physical goods, and only for physical goods, purchased from Appcentrix llc under the tradename SIM-PANEL (the "Physical Goods").

What does this limited warranty cover?
This Limited Warranty covers any defects in material or workmanship under normal use during the Warranty Period.
During the Warranty Period, Appcentrix llc will repair or replace, at no charge, products or parts of a product that proves defective because of improper material or workmanship, under normal use and maintenance.

What will we do to correct problems?
Appcentrix llc will either:

• Exchange the Product at no charge, using new or refurbished replacement parts
• Refund your purchase price, less applicable shipping fees/charges and fees levied by governmental taxing authorities outside of the U.S.

How long does the coverage last?
The Warranty Period for Physical Goods purchased from Appcentrix LLC is ONE YEAR from the date of purchase.
A replacement Physical Good or part assumes the remaining warranty of the original Physical Good or 30 Days from the date of replacement or repair, whichever is longer.

What does this limited warranty not cover?
This Limited Warranty does not cover any problem that is caused by:

• Conditions, malfunctions or damage not resulting from defects in material or workmanship
• Conditions, malfunctions or damage resulting from negligence, improper maintenance or modification
• Theft or loss of the Physical Goods

Who pays for shipping?
Initial return shipping costs and charges are to be pre-paid by the customer. If deemed warrantable, Appcentrix llc will gladly reimburse the customer for all applicable return shipping charges.
Appcentrix llc shall not assume any risk of loss or damage to the Physical Good while in transit to us.
This Limited Warranty is void if the Physical Goods are returned with removed, damaged or tampered labels or any alterations.

What do you have to do?
To obtain warranty service, you must first contact us to determine the problem and the most appropriate solution for you.
Deliver the Physical Goods, in either its original packaging or in a package that provides an equal degree of protection, including any accessories or documents that shipped with the Physical Goods to the address specified by Appcentrix LLC.
You can contact us by any of the following contact methods:

• By email: sales@simpanel.com
• By phone: TOLL-FREE (877) 674-6726

Implied Warranties EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ALL IMPLIED WARRANTIES (INCLUDING WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE) SHALL BE LIMITED IN DURATION TO THE DURATION OF THIS LIMITED WARRANTY.

Limitation of Damages
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, APPCENTRIX LLC SHALL NOT BE LIABLE FOR ANY INCIDENTAL, INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF EXPRESS OR IMPLIED WARRANTY OR CONDITION, OR UNDER ANY OTHER LEGAL THEORY.

Consumer Protection
Some states do not allow the exclusion or limitation of incidental or consequential damages, or allow limitations on how long an implied warranty lasts, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights that vary by state to state.

Governing Law
This Limited Warranty shall be governed by the laws of Florida, United States without giving effect to any conflict of laws principles that may provide the application of the law of another jurisdiction.
