SIM-PANEL HT/HTE BUTTON BOX
Quick User Guide

www.simpanel.com
For fast, courteous service please email sales@simpanel.com

PRINT GUIDE

CONNECTING YOUR HT/HTE BUTTON BOX

• Plug the USB connector cable from the back of your SIM-PANEL HT/HTE Button Box into any available USB port on your computer.

SETUP AND CONFIGURE YOUR SIM-PANEL HT/HTE Button Box

Applies to configuration within American Truck Simulator™ and European Truck Simulator 2™

• Launch American Truck Simulator™ (ATS) or European Truck Simulator 2™ (ETS2).

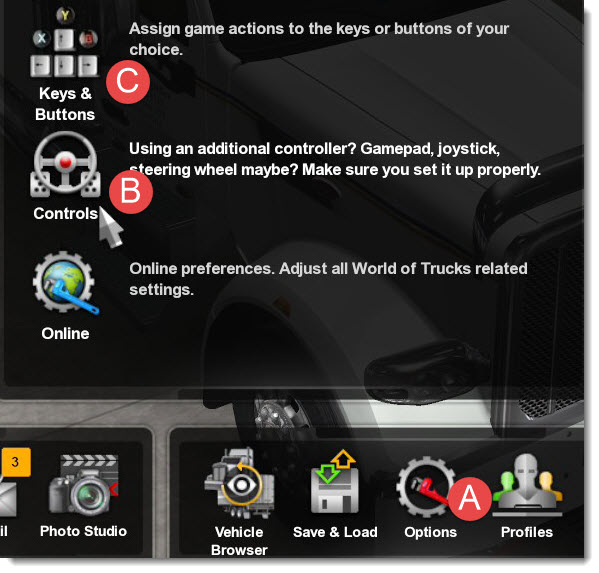

• Select "Options" (A) (Image 1) from the bottom of the Garage dialog.
• Select "Controls" (B) (Image 1).

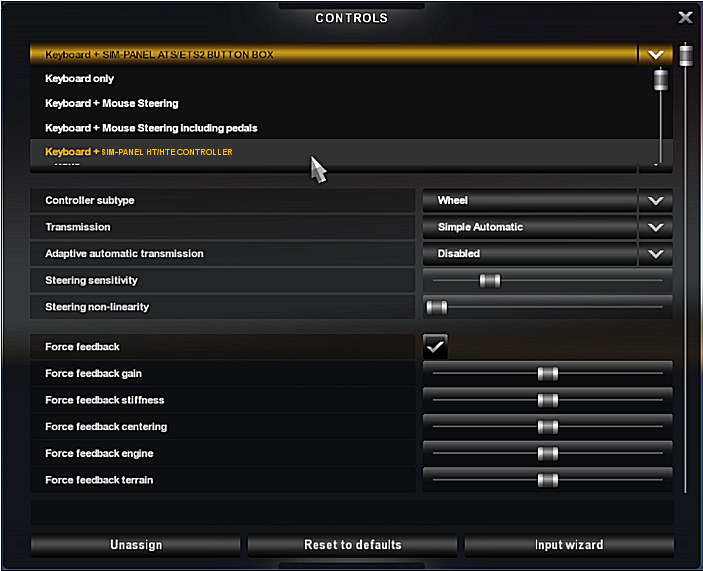

• Locate an unassigned ("None") controller slot at the top of the dialog (Image 2) and select the "SIM-PANEL HT/HTE CONTROLLER" from the drop-down selections.

MAPPING YOUR BUTTON BOX BUTTONS/CONTROLS

IMPORTANT! ENSURE ALL CONTROLS ARE IN THE OFF POSITION PRIOR TO PERFORMING THE FOLLOWING STEPS!

Select "Keys & Buttons" (C) (image 1 above ), then click the "Secondary" mapping button applicable to each listed FUNCTION and perform the corresponding ACTION.

(HTE ONLY) PROGRAMMING AND MAPPING THE AUXILIARY CONTROLS (AUX.1 & AUX. 2)

Both auxiliary controls (AUX. 1 & AUX. 2) may be mapped to any function(s) you wish, including functions that may require special handling. After configuring the desired operation mode (see below), simply perform the same process used to map the standard functions (see above) to your desired in-game function(s).

The auxiliary controls may be programmed to support one of THREE modes by simply pressing/actuating and HOLDING the applicable control until the panel backlighting flashes in accordance with the selected mode (approx. 30 seconds)...

MODE 1 (DEFAULT - 1 flash): Standard control functionality. Game port ON while pressed/actuated and OFF when released.
MODE 2 (2 flashes): Semi gated functionality: Game port momentarily ON-OFF when pressed/actuated and momentarily ON-OFF again when released.
MODE 3 (3 flashes): Full gated functionality: Game port turns ON when pressed/actuated and released and remains ON until pressed/actuated and released again.

(HTE ONLY) CUSTOMIZING YOUR HTE BUTTON BOX

• CUSTOMIZING BACKLIGHTING COLOR

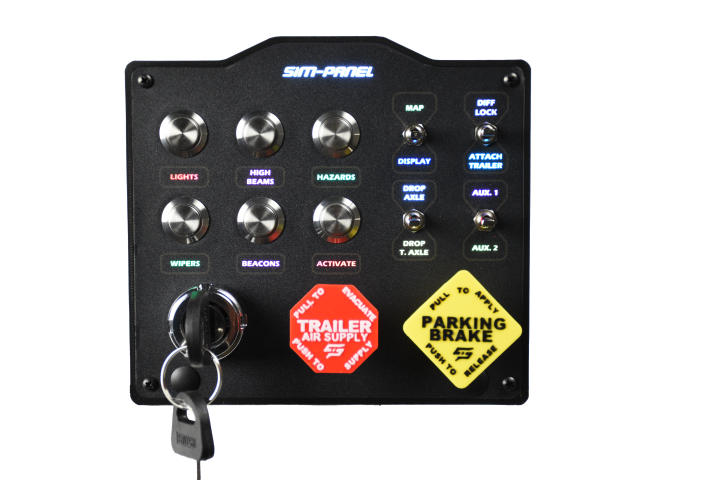

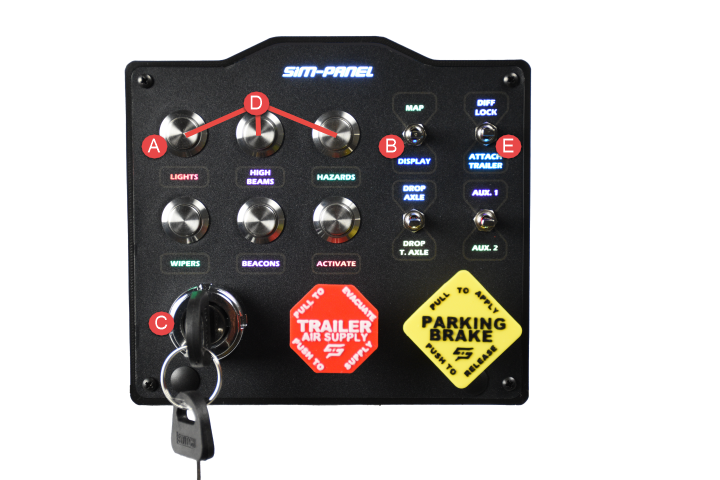

1. Press and HOLD DOWN the button labeled "LIGHTS" (A) while also toggling and HOLDING the toggle labeled "DISPLAY" (B).
2. The label backlighting will begin to cycle.
3. Release both controls upon reaching the desired backlight color.

REMINDER: Press and HOLD the button labeled "LIGHTS" (A) and momentarily press and release the toggle labeled "DISPLAY" (B) to cycle the panel lights on/off.

• CUSTOMIZING INDIVIDUAL LABEL BACKLIGHT COLORS

  1. Turn the IGNITION KEY (C) clockwise to the full START position and HOLD until the backlighting begins to flash, then release back to the RUN position.
     DO NOT TURN BACK TO THE OFF POSITION!
  2. Press and release each individual control repeatedly until the desired backlight color for the control label is reached.
  3. Repeat for each individual label/control.
  4. After customizing all control labels, turn the IGNITION KEY (C) counterclockwise to the OFF position.

• CUSTOMIZING BACKLIGHT INTENSITY

  1. Press and HOLD DOWN the button labeled "LIGHTS" (A) while toggling and holding the toggle labeled "DIFF. LOCK" (E) to INCREASE backlighting intensity or the toggle labeled "Attach Trailer" (E) to DECREASE backlighting intensity.

• RESETTING TO FACTORY DEFAULTS

  1. Simultaneously Press and HOLD the "LIGHTS", "HIGH BEAMS" and "HAZARD" buttons (D).
  2. The panel lights will momentarily flash indicating your SIM-PANEL has been successfully reset. Release buttons.

• UTILIZING THE OPTIONAL DESK CLAMPS

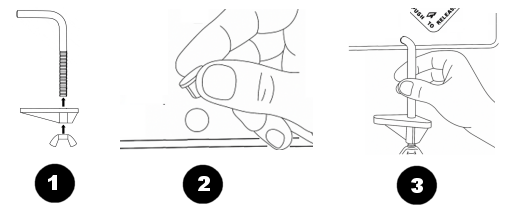

  1. Carefully remove the two plastic plugs located toward the bottom of the button box front panel.
  2. Insert the non-threaded end of both metal L-CLAMPS (included) into the uncovered slots. (SEE NOTE BELOW)

     NOTE: A Tight fit is normal and by design. A slight back and forth twisting motion while pressing/inserting the L-CLAMPS into the slots is recommended.
  3. Slide a lower clamping component (included), flat/clamping side first, over the threaded end of each L-CLAMP followed by a wingnut (included).
  4. Position the desktop/tabletop edge between the bottom surface of your SIM-PANEL HT/HTE button box and both lower clamps and tighten wingnuts to secure. DO NOT OVERTIGHTEN!
